Matrox IP KVM Solutions:
Secure, Scalable, Real-Time Control.

From uncompressed 4K over 10GbE to high compression over 1GbE, Matrox Extio 3 and Avio 2 IP KVM extenders provide secure, scalable solutions tailored for real-time remote access and high-performance 4K KVM extension.


Contact an Expert

Two Powerful Solutions, One Standard of Excellence.

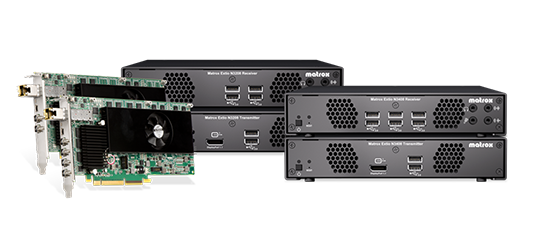

Extio 3 series

Matrox Extio 3

Multi-Monitor KVM over 1GbE LAN, WAN, & Internet

Connectors: Native DisplayPort and USB 2.0 support.

Network: Secure extension over 1GbE LAN, WAN, & Internet.

Quality: 4Kp60 4:4:4, dual 4Kp30, or up to four 1080p60 over IP at unprecedented low bitrates.

Key Feature: Aggregator Mode and Tile View (Control 4 systems with 1 keyboard & mouse).

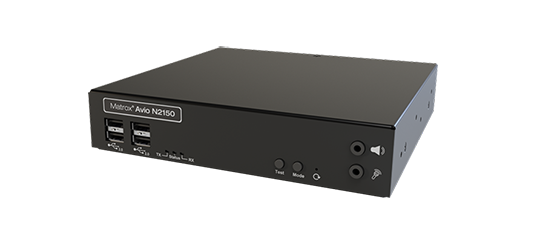

Avio 2 series

Matrox Avio 2

IPMX / Open Standards-based IP KVM

Connectors: Native HDMI and USB 2.0 support.

Network: Supports 1GbE to 10GbE networks.

Quality: Uncompressed to Visually Lossless 4K60 4:4:4.

Key Feature: Based on open-standards such as IPMX, SMPTE ST 2110, and NMOS.



Matrox Extio 3 Series

Maximize Operator Efficiency with Aggregator Mode

It’s not just about extension; it’s about workspace optimization. Extio 3 reduces desktop clutter by allowing operators to view and control up to four different systems using just one keyboard and mouse with seamless mouse switching.

Secure Remote Operations: Built-in Advanced Encryption Standard (AES) protects sensitive data when extending signals between the transmitter and receiver.

Easy Integration: Runs on standard Gigabit Ethernet infrastructure for easy integrating into existing environments.

Smart Control: Easily switch between multiple computer systems or monitor multiple feeds simultaneously—critical for rapid decision-making.


Learn More

Control room operator
Control room operator

Matrox Avio 2 Series

Eliminate Vendor Lock-in with IPMX & ST 2110

Stop limiting your AV workflows with closed ecosystems. Avio 2 is built on open standards, allowing you to integrate high-performance KVM directly into your existing broadcast or Pro AV IP workflows and equipment.

Universal Compatibility: Collaborate seamlessly with other IPMX or ST 2110 devices, streamlining KVM extension across your network for reliable, high-end performance.

Infrastructure Agnostic: Adaptable to either 1GbE or 10GbE infrastructures while maintaining visually lossless performance.

Fanless & Silent Operation: Features a passive cooling design that ensures noiseless operation, ideal for sound-sensitive control rooms, broadcast studios, and quiet medical suites.


Learn More

Why Matrox IP KVM?

Matrox Video IP KVM solutions are engineered to meet the rigorous demands of 24/7 mission-critical environments. Gain peace of mind with a portfolio built on a foundation of reliable performance, security, adaptability, future-proof scalability, and future-proof scalability.


Robust Security

Security icon
Both Extio 3 and Avio 2 feature enterprise-grade security protocols, including encrypted transmission and Active Directory integration, to protect mission-critical data.

Network Flexibility

Flexibility icon
From standard Gigabit Ethernet to high-bandwidth 10GbE fiber, our solutions utilize your existing network infrastructure to reduce cabling costs and complexity.

Scalable Architecture

Scalability icon
Start with a point-to-point extension and scale to a massive many-to-many matrix as your needs evolve, all managed via centralized software.

Frequently Asked Questions

Q: Copper vs. Fiber: Which cabling should I use for my KVM installation?

The choice depends on your building's current infrastructure and the required transmission distance. Matrox KVMs (Extio 3 and Avio 2) are designed to be additive solutions, allowing you to leverage your existing cabling today and transition to new technology at your own pace.

  • Existing / Older Buildings (Copper CATx): Leverage standard wiring for cost-effective runs up to 100m.
  • New Builds / Long-Range (Fiber Optic): Ideal for high-EMI (electromagnetic interference) areas or distances reaching up to 10km.

The Matrox Advantage: You don't have to choose hardware based on your cable type. Because Extio 3 and Avio 2 utilize modular SFP ports, the same device can support either Copper or Fiber simply by swapping the transceiver. This eliminates the need for a costly "rip and replace" overhaul when upgrading your facility.

Q: Can I manage my KVM network centrally?

Yes. Matrox KVM software provides a centralized interface to configure, manage, and monitor all Extio 3 and Avio 2 units on your network. This software allows administrators to easily route any host to any user station, manage security settings, and perform firmware updates across the entire installation from a single console.

Q: Why is Matrox KVM technology trusted for high-security environments?

Security is a core component of Matrox architecture, featuring robust AES encryption for all data transmission. Both the Avio 2 and Extio 3 lines offer TAA-compliant SKUs, meeting the necessary standards for government and defense procurement. By centralizing hardware in restricted rooms, these solutions prevent physical tampering and unauthorized data extraction via USB ports.

Ready to optimize your control room or production workflow?

Contact our team to discuss which solution—Extio 3 or Avio 2—is right for your deployment.
