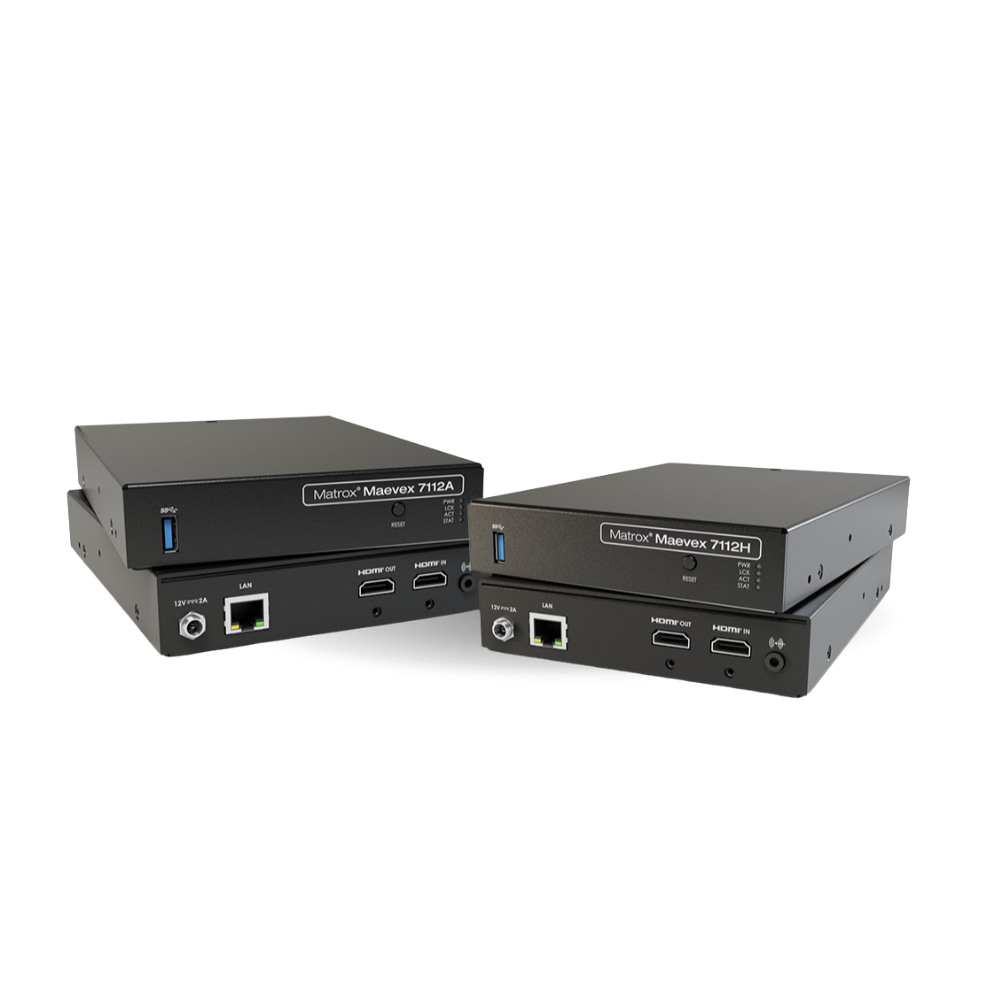

Matrox Maevex 7100 Series: Single-Channel 4K60 Encoders

AV-over-IP with ultra-low latency, high-efficiency AVC and HEVC compression.

Deliver flawless single-channel 4K60 video across your network without overloading your infrastructure. Relying on dedicated hardware and advanced AVC and HEVC (H.265) compression, the Maevex 7100 Series allows you to stream pristine, high-resolution content—even over limited bandwidth networks.

Whether you are routing critical feeds to a security operations center or securely streaming to off-site specialists, Maevex provides the ultra-low latency and 24/7 continuous operation demanded by mission-critical environments. Engineered as a compact, completely fanless appliance, it delivers rock-solid reliability and silent performance perfectly suited for process control rooms, public safety, and medical facilities.

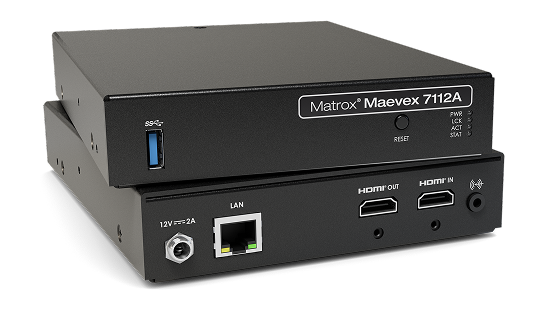

Maevex 7112A H.264 Encoder

Build a reliable, standardized AV-over-IP workflow. The 7112A provides dedicated single-channel 4K60 capture with high-efficiency AVC (H.264) encoding and zero-latency pass-through, ensuring compatibility across your ecosystem while keeping your local operator displays perfectly synced.

Maevex 7112H H.264/H.265 Encoder

Overcome network constraints with high compression HEVC encoding. The 7112H leverages ultra-high compression HEVC (H.265) to securely route pristine 4K60 feeds without congesting your IT infrastructure, while offering zero-latency pass-through for a seamless local viewing experience.

Stream, Record, & Silent Operation

The 7100 series allows you to simultaneously stream pristine 4K feeds across your network while recording high-quality files for compliance and after-action review. Housed in a completely fanless appliance, it guarantees rock-solid, silent 24/7 performance.

Maevex 6100 Quad 4K Encoder (PCIe)

For data centers and custom integrations requiring maximum footprint efficiency, the Maevex 6100 PCIe card drives simultaneous quad 4K capture, encode, stream, and record concurrently from a single slot. Scale effortlessly by deploying multiple cards per system to support high-density control room and enterprise environments.

Flexible 4K60 streaming and recording

Placeholder for 50% Text Box.

Stream and Record 4K60 from Anywhere

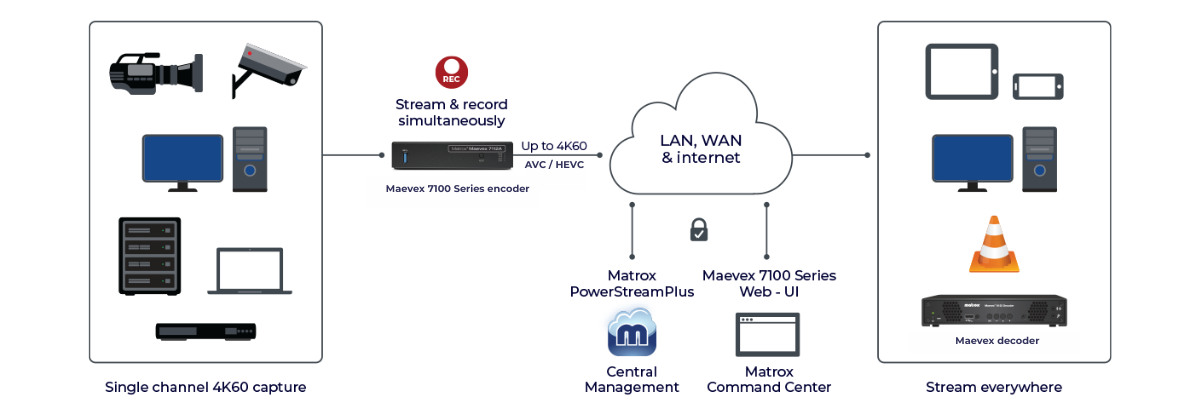

Ultra-Low Latency AV-over-IP Routing for the Maevex 7100 Series

This workflow illustrates the standard Maevex 7100 capture‑to‑distribution path, designed to support mission‑critical delivery without overloading your IT infrastructure.

Placeholder for 33% Text Box.

Placeholder for 33% Text Box

Placeholder for 33% Text Box.

Software & Integration Tools

Deploy, manage, and integrate your 7100 series appliances with flexible, zero-cost tools designed specifically for system integrators:

Centralized IT Administration: Utilize included centralized software tools like PowerStream Plus to discover, configure streams, monitor device health, and control large deployments from a single interface—simplifying operations and reducing management overhead without per-node licensing fees.
Custom API Integration:Leverage a complete range of SDKs and REST APIs to seamlessly integrate 4K video routing into your existing control environments. This allows system integrators to bypass proprietary interfaces and build custom control logic for third-party enterprise systems.

Frequently Asked Questions

Q1. We operate on standard 1GbE networks. How will 4K60 streaming impact our bandwidth?

The Maevex 7100 Series is designed specifically to deliver pristine 4K video without requiring expensive infrastructure upgrades. By leveraging high compression HEVC (H.265) and advanced rate controls (CBR/VBR), administrators can easily route high-resolution feeds across standard 1 Gigabit Ethernet networks while maintaining strict control over bandwidth utilization.

Q2: Our infosec policy requires strict access control. Does the 7100 Series support Active Directory?

Yes. The 7100 Series is built for zero-trust and highly secure system integrators. It integrates seamlessly with Microsoft Active Directory, allowing you to manage user access and establish credentialed profiles using your existing IT infrastructure. Furthermore, it supports 802.1x network authentication and encrypts all device command and control signals via HTTPS.

Q3: Are these encoders approved for government and defense applications?

Absolutely. Matrox Video provides specific TAA-compliant SKUs for the Maevex 7100 Series, making them fully eligible for United States government procurement. Combined with AES encryption for secure routing, they are perfectly suited for mission-critical defense, public safety, and secure control room environments.

Q4: Can we integrate these encoders using our existing third-party AV systems?

Yes. We provide comprehensive developer tools and REST APIs for the entire Maevex 7100 Series. This allows your engineering team or system integrators to bypass proprietary interfaces and build custom control logic, seamlessly integrating the encoding appliances into your existing AV ecosystems, Crestron/Q-SYS control systems, or VMS platforms.

Q5. How do I contact Matrox for sales or get support to integrate and maintain uptime for my deployment?

The Maevex 7100 Series is backed by dedicated Matrox Video technical support to ensure you have expert assistance to integrate and maintain uptime and resolve issues quickly. We maintain a global presence with dedicated sales offices and authorized partners across Europe, Asia, and the Americas. Simply fill out our contact form for the fastest response regarding your project requirements.

Placeholder for 50% Text Box.

Ready to optimize your AV-over-IP workflow?

Contact an expert today to discuss your specific ultra-low latency routing requirements and find the right Matrox Maevex 7100 Series appliance for your project.
