Matrox Maevex MGX: 4K AV USB over IP Encoders & Decoders
Stream 4K60 H.265 4:4:4 video with latency as low as one frame, at up to 1/20th the bitrate of virtually all other ProAV codecs. Built for control rooms, command centers and enterprise AV.
Why Maevex MGX?
Most AV-over-IP systems make you trade image quality for bandwidth, or interactivity for simplicity. Maevex MGX delivers 4K60 with fine 4:4:4 detail, USB peripherals and open-standard interoperability on a standard 1G network.
Pristine 4K60 at a Fraction of the Bandwidth
Matrox IQ Mode delivers 4K60 H.265 (HEVC) video at up to 1/20th the bitrate of virtually all other ProAV codecs, so you scale without upgrading your network.
- H.265 4:4:4 in 8-bit or 10-bit keeps text, maps and dashboards sharp
- Glass-to-glass latency as low as one frame (16 ms) in Matrox IQ Mode
- H.264 support for compatibility with existing systems
- Uncompressed audio in both IPMX and Matrox IQ Mode
Full USB Control, Not Just Video
Operators work with remote systems as if the computer were under their desk. Every Maevex MGX model extends USB 2.0, so you don't need separate KVM hardware.
- Keyboard and mouse
- Webcams
- USB headsets and speakers
- Sound and video conferencing bars
Open Standards, Flexible Streaming
Choose open-standard IPMX for interoperability, Matrox IQ Mode for maximum performance, or run both at once with multi-stream support.
- NMOS IS-04 and IS-05 for discovery and routing with any NMOS controller
- RTP/RTSP, SRT and MPEG2-TS streaming alongside IPMX
- Stream one input to multiple destinations and formats
- Matrox Central Manager and Web UI for discovery, updates and configuration

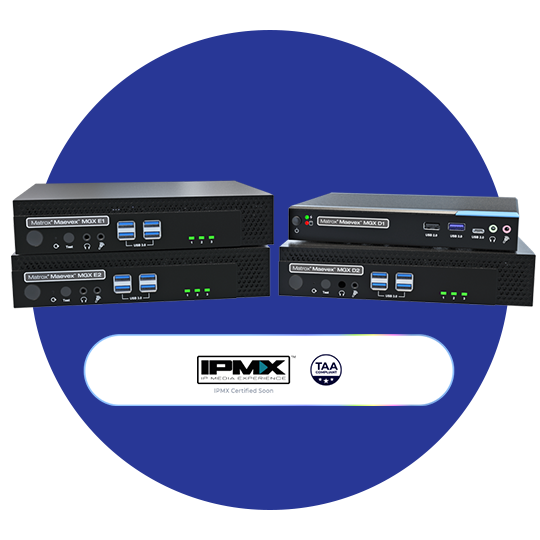

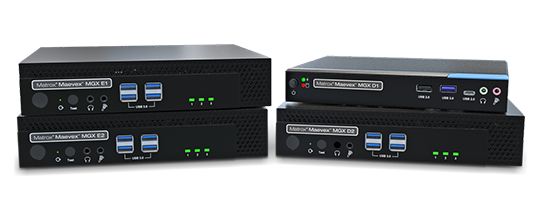

Choose Your Maevex MGX
Professional video encoders and decoders for HDMI over IP, from a single-channel 4K60 HEVC hardware encoder to multiview decoding.

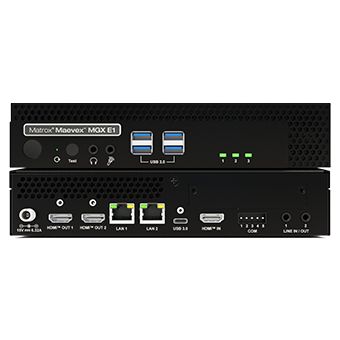

Single-channel 4K60 H.265/H.264 encoder
Maevex MGX E1 supports open-standard IPMX, Matrox IQ Mode, and a wide range of streaming protocols, delivering the interoperability, performance, and flexibility needed for any AV-over-IP workflow.

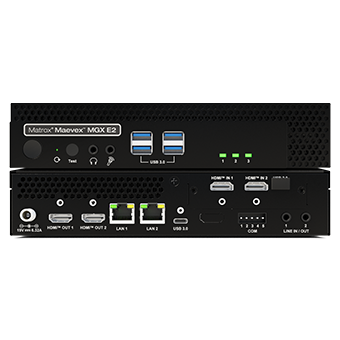

Dual-channel 4K60 encoder for two HDMI sources, with one-frame IQ Mode latency
Maevex MGX E2 delivers enterprise-grade AV-over-IP streaming with support for IPMX, Matrox IQ Mode, and multiple protocols for maximum interoperability and performance. Advanced codecs, integrated USB, and efficient bandwidth utilization enable scalable, collaborative workflows across any environment.

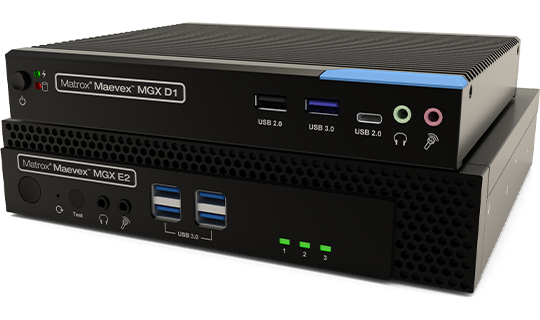

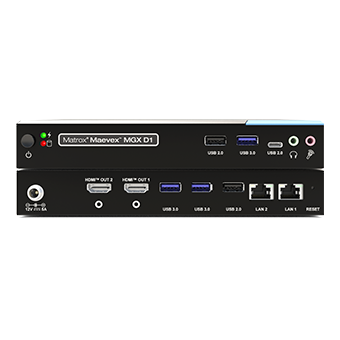

One 4K60 output or two 1080p60 outputs, with multiview layouts
The Maevex MGX D1 decoder enables high-performance, interoperable AV-over-IP streaming with support for IPMX, Matrox IQ Mode, and multiple protocols. Advanced codecs and integrated USB deliver scalable collaboration and remote workflows with exceptional bandwidth efficiency.

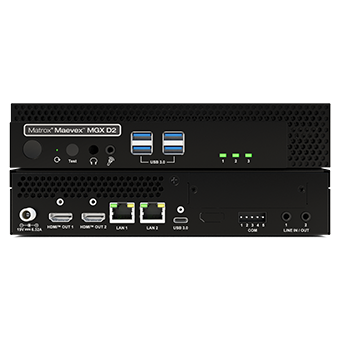

Up to two 4K60 outputs, or decode up to eight 1080p60 streams
The Maevex MGX D2 decoder redefines AV-over-IP decoding with dual 4K60 support, imperceptible low latency, and exceptional bandwidth efficiency. Built for enterprise environments, it delivers seamless interoperability, real-time collaboration, and scalable deployment flexibility.
How Maevex MGX Delivers 4K60 AV-over-IP
at 1/20th the Bandwidth
See the bandwidth math behind Matrox IQ Mode, and a live side-by-side of Maevex MGX decode against direct camera pass-through. Covers the three types of AV-over-IP available today and where each one forces a compromise.
Why Maevex MGX is a
Paradigm Shift in AV-over-IP
Quality, latency, and bandwidth have always been a trade-off in pro AV. The Maevex MGX Series removes it — lossless H.265 4:4:4 at 20–50 Mbps, built for control rooms, command centers, and enterprise AV.
Control Room AV over IP, from Operator Desk to Overflow Room
See how Maevex MGX control room video encoders and decoders deliver command center video over IP and low-latency video distribution across a standard 1G network, from operator desks to video walls, recorders and overflow rooms.

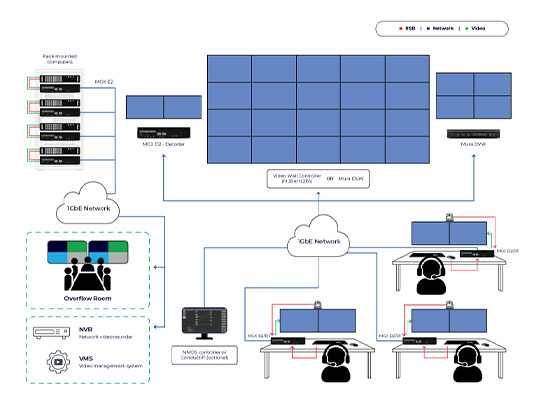

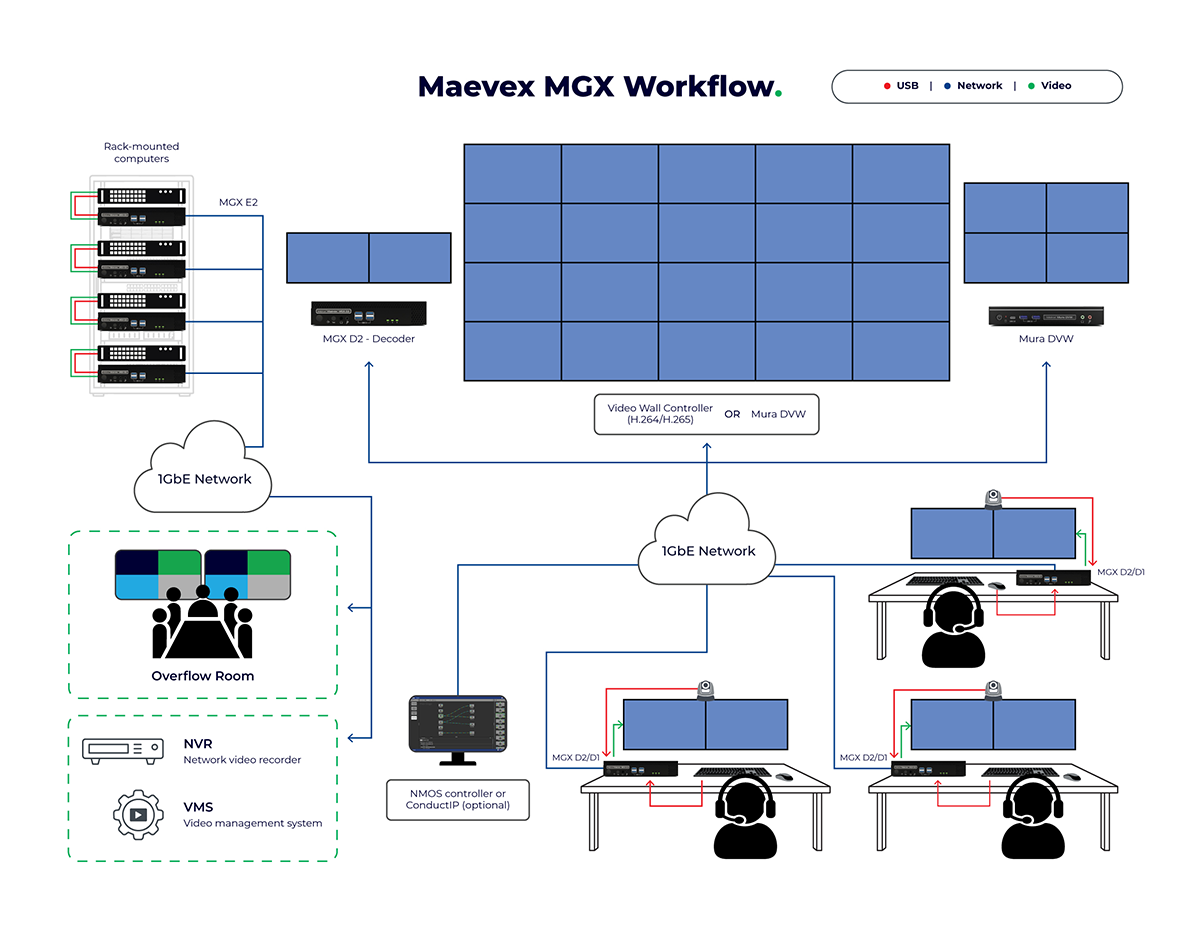

Centralized Security, Remote Control: Secure computers in a server rack and extend video, audio, keyboard, mouse and webcam to operator desks. Route the same 4K streams to video walls, NVRs and overflow rooms over a standard 1G network.

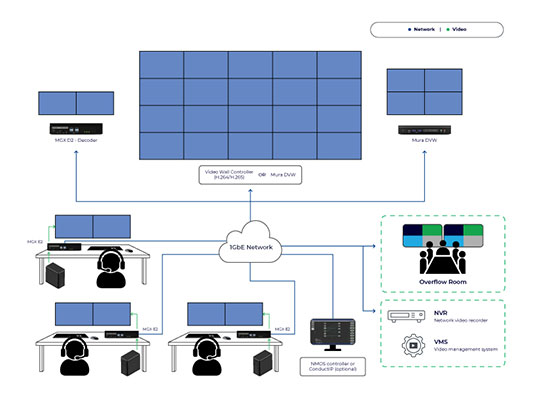

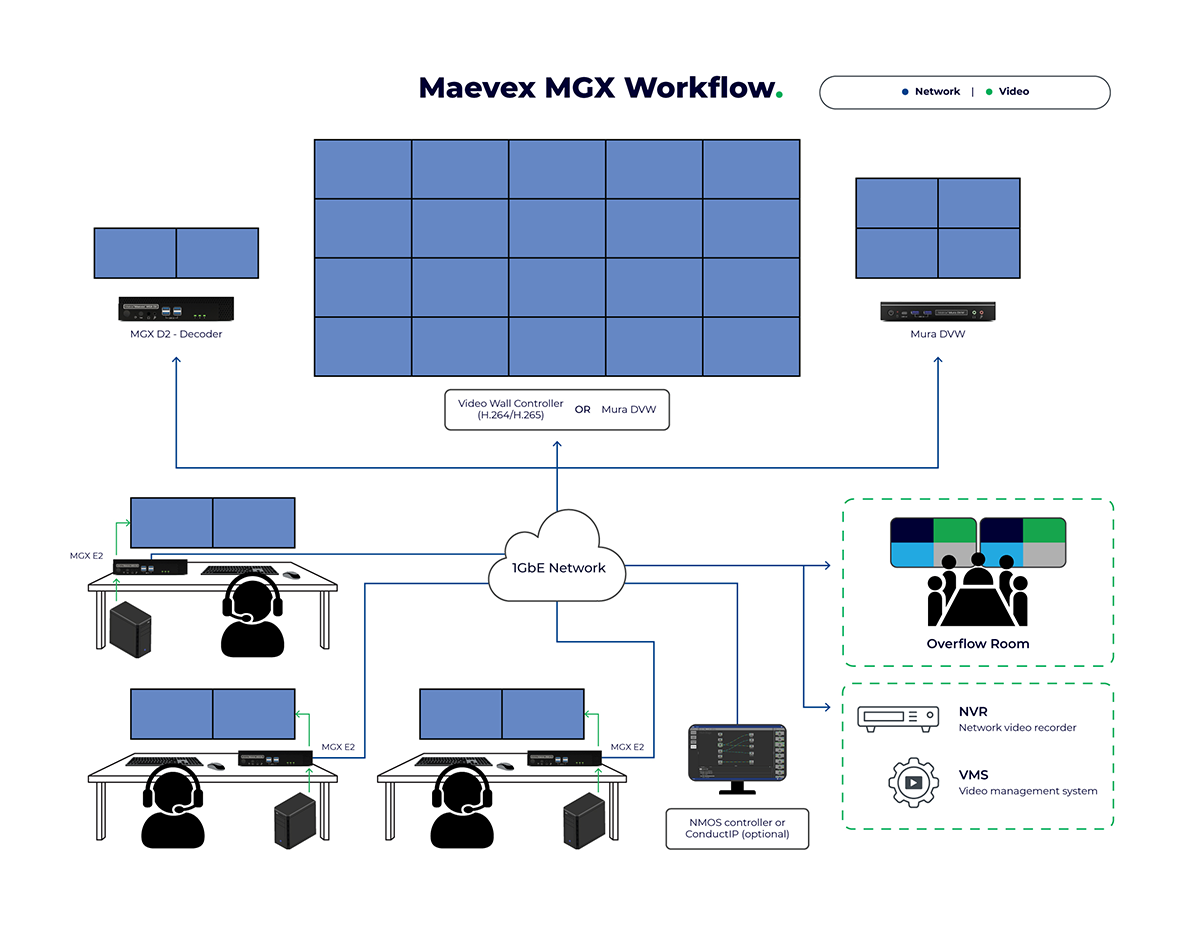

Local Computers, Shared Everywhere: Keep computers at the operator desk with local HDMI pass-through. At the same time, stream low-latency 4K over your 1G network to video walls, NVRs, VMS and overflow rooms.

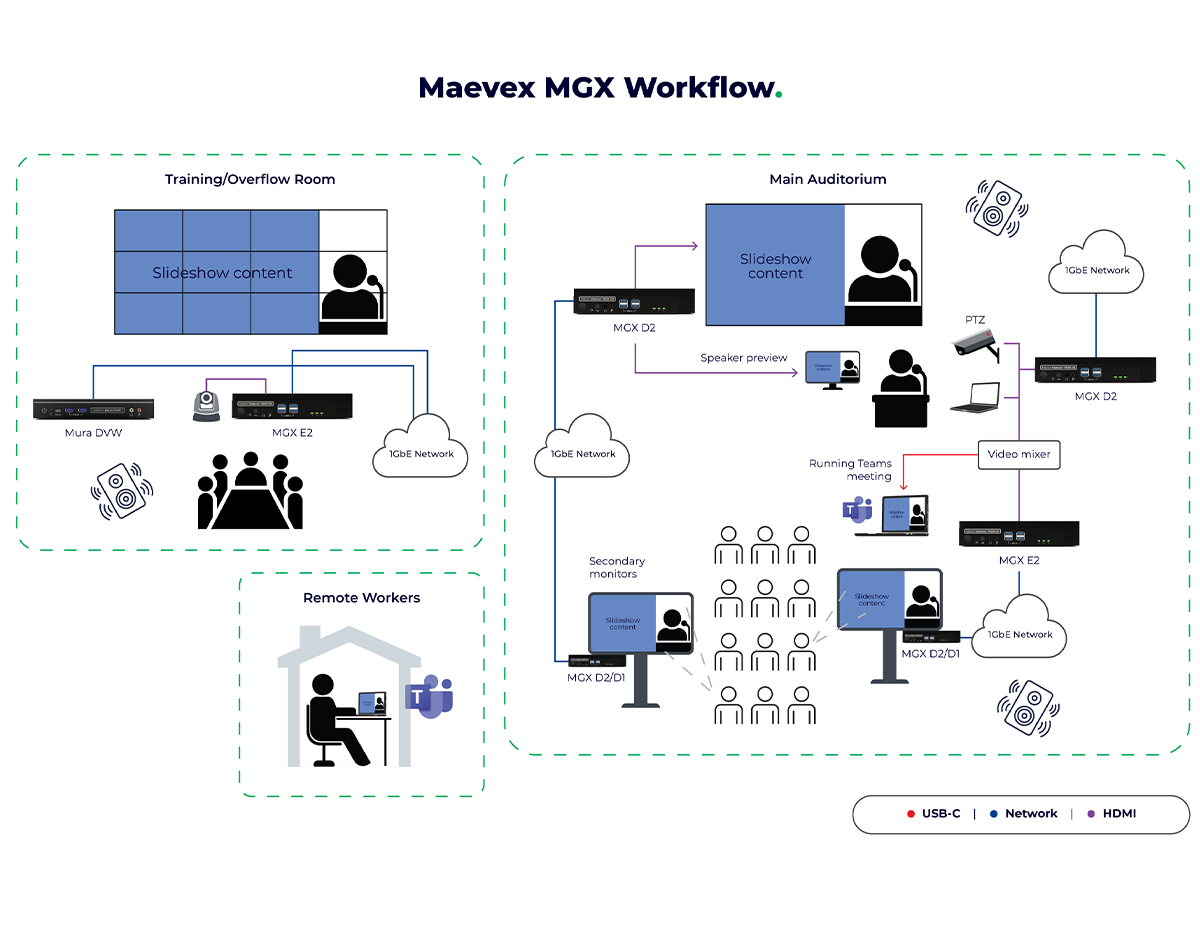

Corporate AV Distribution: Stream executive communications, town halls, and company-wide events to every audience at once — the main auditorium, overflow and training rooms, regional offices, and remote employees on Teams or Zoom. MGX E2 encoders feed MGX D1 and D2 decoders across a standard 1GbE network, with synchronized audio and video so the experience holds up inside or outside the room. HEVC 4:4:4 encoding at 1/20th the bandwidth of traditional ProAV solutions means it runs on the corporate network you already have, without a parallel AV infrastructure.
FAQ
- How can Maevex MGX help reduce network congestion?
Matrox IQ Mode delivers 4K60 H.265 video at up to 1/20th the bitrate of virtually all other ProAV codecs, so you can add sources and endpoints helping you scale more efficiently on your existing network. - What exactly is Matrox IQ Mode?
It's Matrox Video's high-performance streaming mode for Maevex MGX. It delivers 4K60 with H.265 4:4:4 image quality and glass-to-glass latency as low as one frame, at very low bitrates. You can run it alone, or alongside IPMX on the same device. - Do I need extra hardware for keyboard, mouse and webcam?
No. Every Maevex MGX model supports USB 2.0 for keyboards, mice, webcams, USB headsets, speakers and sound or video conferencing bars, so operators can control remote systems without a separate KVM. - How do we avoid vendor lock-in?
Maevex MGX is IPMX-ready and supports NMOS IS-04 and IS-05, so it works with other standards-based equipment and NMOS controllers. When you need maximum performance between Matrox Video endpoints, switch to Matrox IQ Mode, or run IPMX and IQ Mode at the same time. - Can the MGX Series handle complex multi-stream setups and expansive displays?
Yes. Encoders can send the same input to multiple destinations and formats. The Maevex MGX D2 decodes up to two 4K60 or eight 1080p60 streams with built-in multiview. - How difficult is it to manage and configure multiple endpoints across a large campus?
Matrox Central Manager discovers, updates and configures every Maevex MGX device, and each unit also has its own Web UI. For routing, Maevex MGX works with Matrox ConductIP or any NMOS controller. - We are located outside of North America. How do we get in touch?
Matrox Video works with sales offices, distributors and integration partners worldwide. Fill out the form with your country, and your regional team will get back to you.
Talk to an MGX Expert
Tell us about your control room or AV-over-IP project. A Matrox Video engineer will help you design the workflow, choose the right encoders and decoders, and set up a live demo.
